Multi-Operator Systems

You can count on us for all your equipment needs. We have a large selection of welding equipment available for rent anywhere in the continental US. Rent by the day, week, month, or years. Contact us today to receive a custom rental package for your project.

•150A-200A Stick/TIG Inverters
• 300A Class Inverter Power Sources (Single, 4-pack, or 6-pack)
• 350A Multi-Operator units with DC distribution boxes
• 400A Class Inverter Power Sources (Single, 4-pack, or 6-pack)
• 600A Class Power Sources (Single, 4-pack, or 6-pack)
• Voltage Sensing Wire Feeders

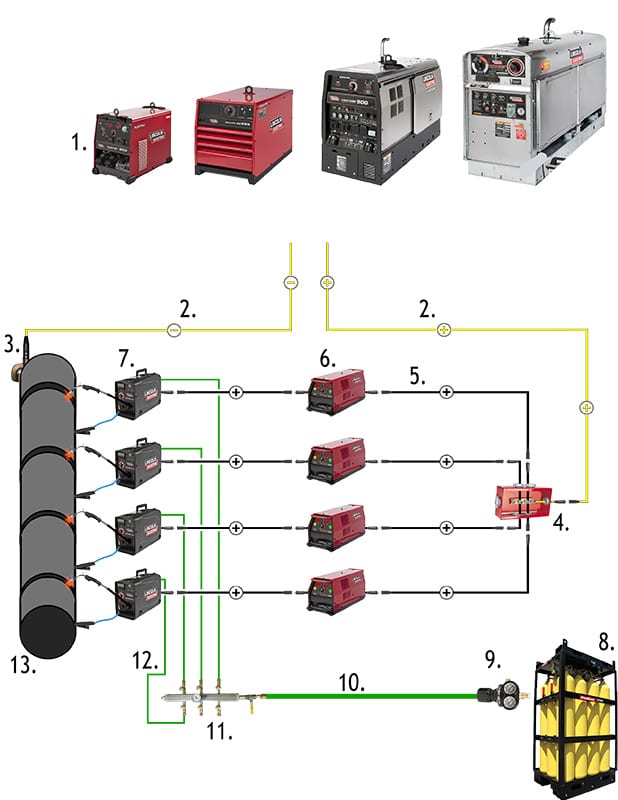

Welding System Diagram

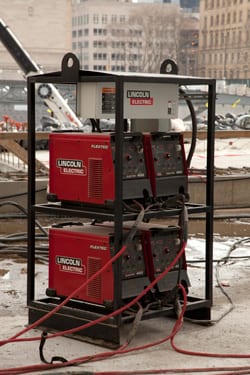

Multi-Operator System

Welding System Components

Power Source: Either electric, or engine driven with a minimum of 72 Open Circuit Voltage
4/0 Power Cable Extension (50′ Sections)
600 Amp Ground Clamp
DC Distribution “Spider” Box
1/0 Power Cable Extension (50′ Sections)
Multi-Weld 350
LN-25 Pro Feeder
Gas Supply (12-pack recommended)
High Flow Inert Gas Regulator w/C-size Outlet
1/2″ Inert Gas “Bull” hose (50′ Sections)
Inert Gas Manifold with 6 x 1/4″ Outlets
1/4″ Inert Gas Hose (50′ Sections)
Work Piece

Miller Power Source

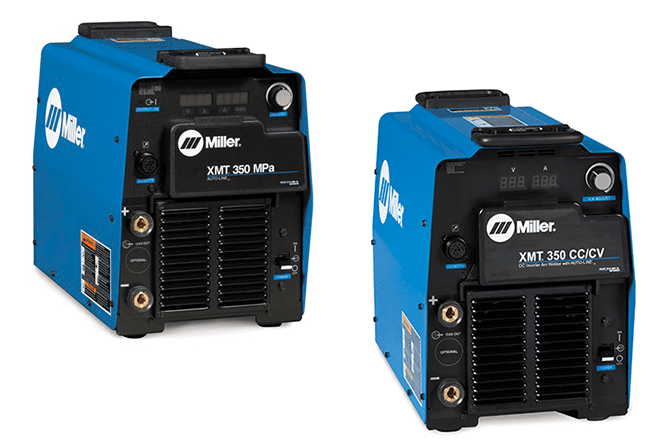

XMT 350 & 350MPA

With multi-process capabilities and features like Auto-Line, the XMT 350 is portable and versatile for applications from job-sites to factory floors.

SPECIFICATIONS:

Input Power: 208–575 Volts, Requires 3- or 1-phase power

Output Range: 10–38 Volts, 15–425 Amps

Net Weight: 80 lb. (36.3 kg)

Processes: MIG /Pulsed MIG / Stick / TIG / Flux-Cored / Arc Gouging

Extras: Reversible wheel kits / with or without plug installation

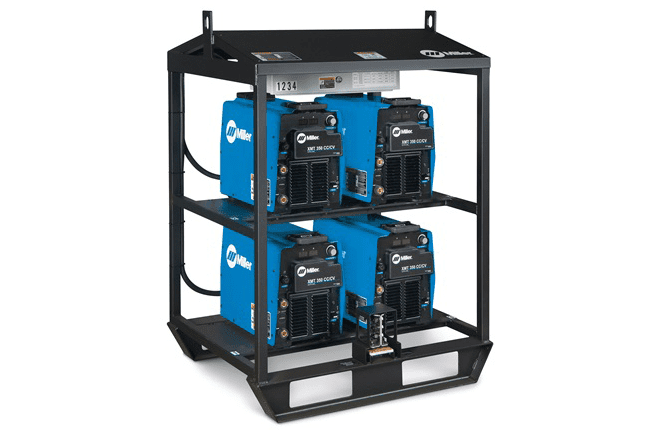

Available as single units, in 4-packs, or 6-packs

Contact Sales Rep

Miller Wire Feeders

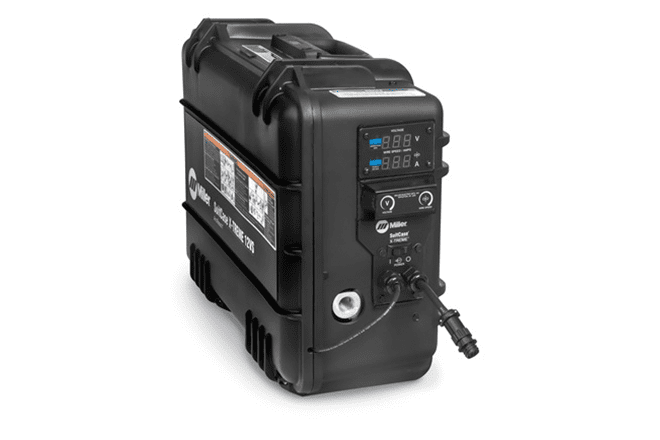

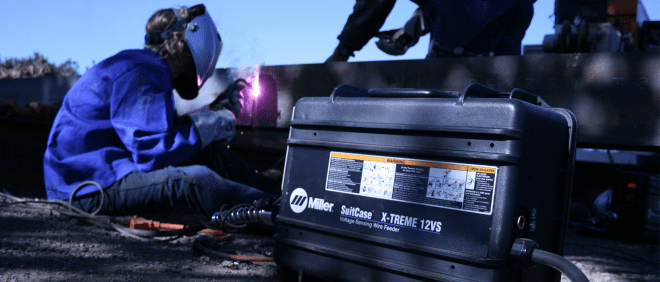

Suitcase X-treme 12VS

Portable wire feeding at its best. Voltage-sensing, arc-reach, portable feeders designed to run off arc voltage from almost any welding power source, provides extreme reliability for construction and fabrication.

ArcReach Technology
Remote Voltage w/o control cable
Digital Meters
Impact resistant case
Gas purge & wire jog

SPECIFICATIONS:

Input Power: 14-48 VDC / 110 OCV Max

Wire Feed Speed: 50-780 Inches Per Minute

Wire Diameter: Solid .023″ – 1/16″ Cored .03″ – 5/64″

Net Weight: 35 lb. (15.9 kg)

Processes: MIG /Pulsed MIG / Flux-Cored

Contact Sales Rep

Lincoln Power Source

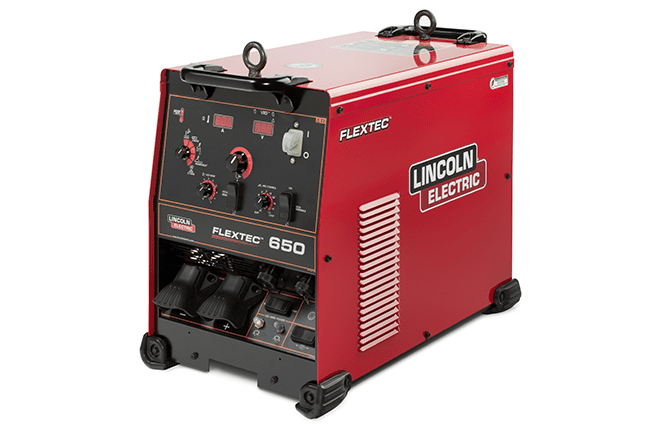

Flextec 650

Simple. Reliable. Flexible. This multi-process welder delivers up to 815 amps of welding power. Embedded CrossLinc® Technology drives welding control at the arc without an added cable to save costs, increase quality and enhance productivity and safety on the job site. The world-ready Flextec® 650X will run on a wide range of available voltage input power and is IP23 rated for outdoor operation and storage. Broad wire feeder compatibility is not an issue – The Flextec 650X will operate with almost any Lincoln Electric® wire feeder or welding process.

SPECIFICATIONS:

Input Power: 380/460/575 Volts, Requires 3-Phase power

Output Range: 10-815 Amps / 44 Volts, 650 Amps 100% Duty Cycle / 750 Amps 60% Duty Cycle

Net Weight: 165 lb. (74.84 kg)

Processes: MIG / Stick / DC TIG / Flux-Cored / Arc Gouging

Extras: Reversible wheel kits / Voltage Reduction Device

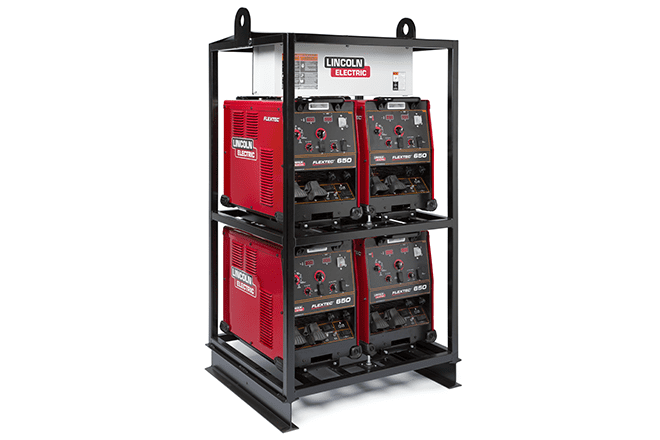

Available as single units or in 4-packs

Contact Sales Rep

Lincoln Power Source

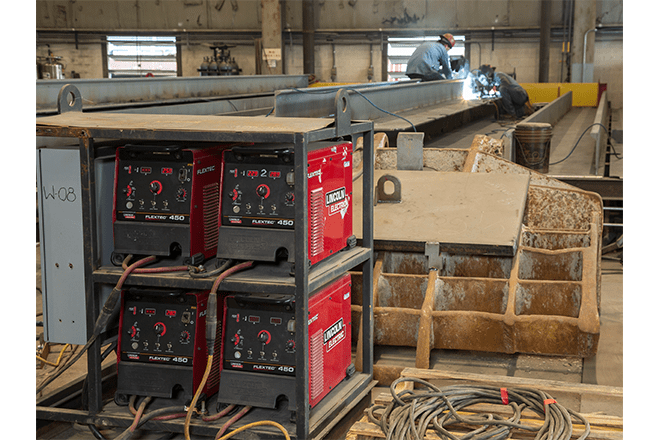

Flextec 450

This multi-process welder delivers up to 500 amps of welding power for a variety of applications, including construction and fabrication. It features an IP23 rating for outdoor operation and storage, and the inverter technology will save you real dollars on the utility costs associated with your welding operations.

SPECIFICATIONS:

Input Power: 380/460/575 Volts, Requires 3-Phase power

Output Range: 10-500 Amps / 38 Volts, 450 Amps 60% Duty Cycle

Net Weight: 125 lb. (56.8 kg)

Processes: MIG / Stick / DC TIG / Flux-Cored / Arc Gouging

Extras: Reversible Wheel Kits / Voltage Reduction Device

Available as single units, 4-packs, or 6-packs

Contact Sales Rep

Lincoln Power Source

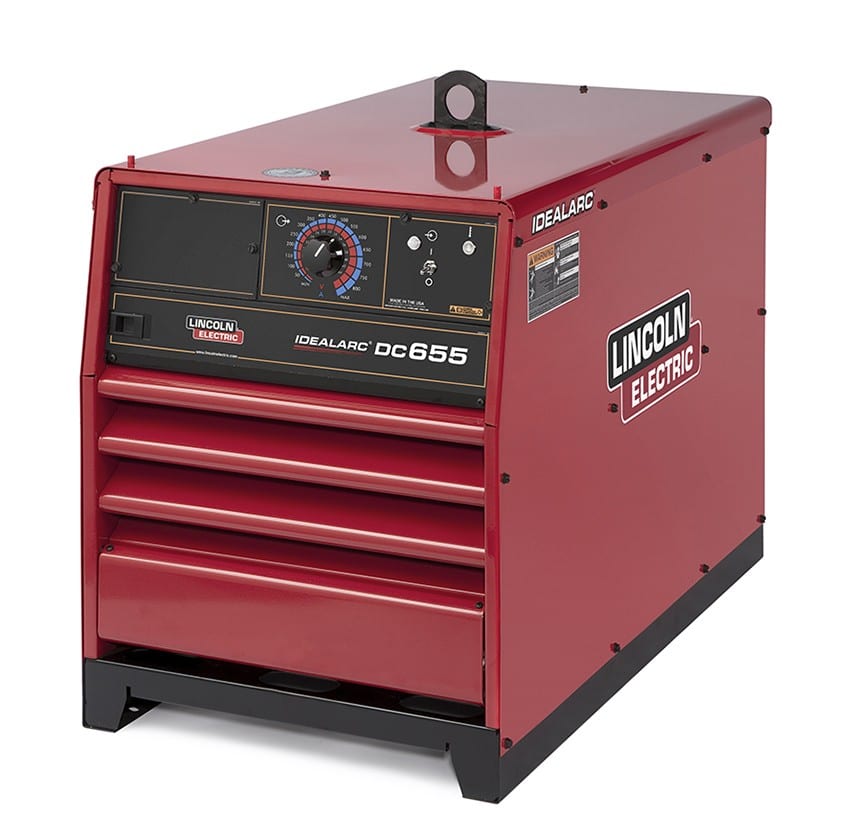

Ideal Arc DC-655

This 650-amp, 100% duty cycle CV/CC power source is ideal for construction and shop fabrication because of its excellent arc performance and many energy saving features. This machine also has a high overall efficiency of 84% for even more energy and cost savings. Save money with the idle shut down timer that powers down the DC-655 when not in use for extra energy conservation. Keep internal components cool without wasting energy with Lincoln’s Fan-As-Needed (F.A.N.) that shuts off automatically when the system is cooled. Don’t think you’re sacrificing arc performance for efficiency; the DC-655 features a calibrated output knob for precise procedure setting and adjustable arc force for a tailored arc and ultimate low end performance – down to 50 amps – for excellent stick, MIG and TIG performance.

SPECIFICATIONS:

Input Power: 230/460/575 Volts, Requires 3-Phase power

Output Range: 50-815 Amps /13-44 Volts / 650 Amps 100% Duty Cycle

Net Weight: 720 lb. (327 kg)

Processes: MIG / Stick / TIG / Flux-Cored / Arc Gouging

Available as single units or 4-packs

Contact Sales Rep

Lincoln Power Source

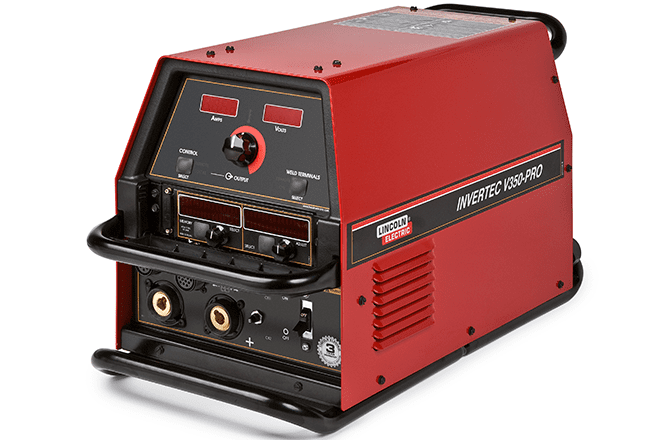

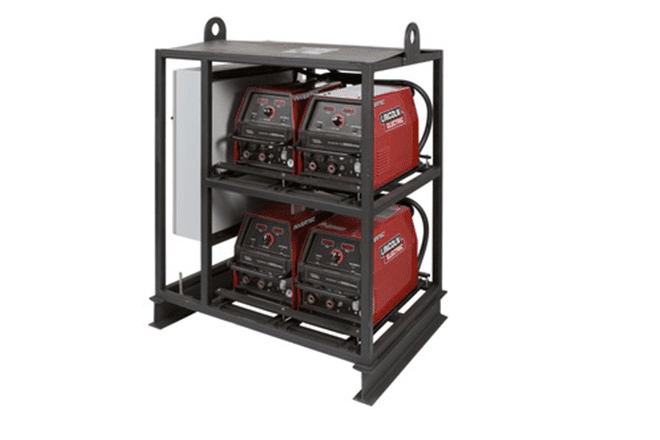

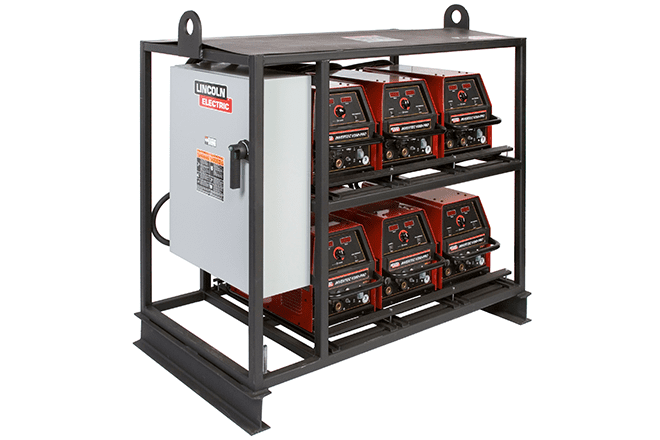

Invertec V350 Pro

The multi-process Invertec V350 PRO is an efficient, lightweight and portable choice for training, fabrication or construction applications. The versatile V350 PRO is ready for almost any welding job in shop or outdoor environments.

SPECIFICATIONS:

Input Power: 208-575 Volts, 1 & 3-Phase power

Output Range: 5-425 Amps / 34 Volts, 350 Amps 60% Duty Cycle

Net Weight: 81 lb. (36.7 kg)

Processes: MIG / Stick / DC TIG / Flux-Cored / Arc Gouging

Available as single units, 4-packs, or 6-packs

Contact Sales Rep

Lincoln Wire Feeder

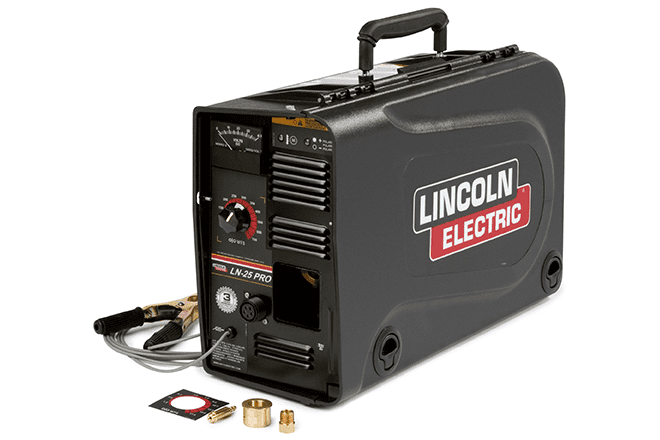

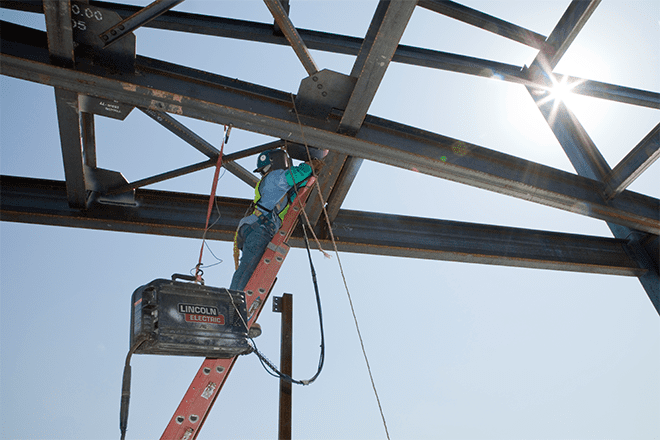

LN-25 Pro Feeder

Portable Industrial Wire Feeders

LN-25 wire feeders are designed to be simple, reliable and easy to service. Whether you are an ironworker, pipeline welder, or weld at a construction site, shipbuilding facility or metal fabrication shop, we have the right semiautomatic wire feeder for you.

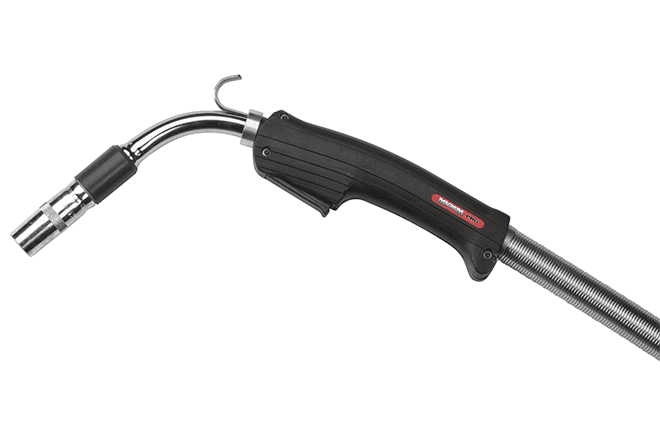

Magnum 300 MIG Gun Supplied
No Control Cables Needed
Internal Gas Solenoid & Flowmeter
Durable & Flame Resistant Case

SPECIFICATIONS:

Input Power: 15-110 VDC

Wire Feed Speed: 50-700 Inches Per Minute

Wire Diameter: Solid .023″ – 1/16 Cored .03″ – 5/64

Net Weight: 37lb. (16 kg)

Processes: MIG /Pulsed MIG / Flux-Cored

Lincoln Multi-Operator Welders

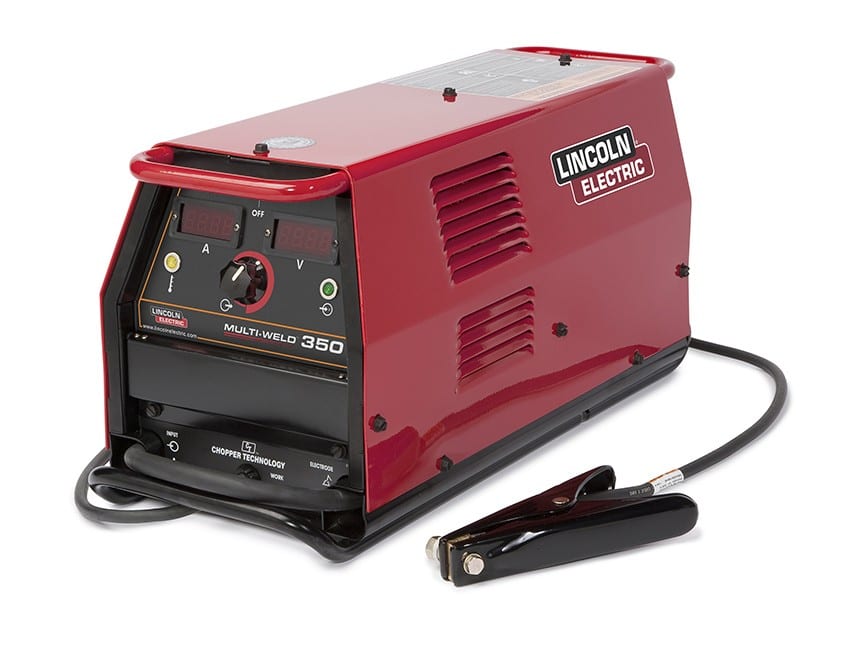

Multi-Weld 350

Connect Several DC+ Welders to One Power Supply.

The Multi-Weld 350 is a 350 amp, DC+, 100% duty cycle welder capable of CV-wire, CC-stick or arc gouging. With its high efficiency, the Multi-Weld 350 offers an entirely new and better way to build large structures. This unique system offers a cleaner, safer job site, and allows operators to have high performance welding control right where they need it — at the arc.

Independent Arc, Starting/Stopping doesn’t affect others,
No control cables needed,
Constant Voltage for MIG & Flux-Core Welding
Constant Current for Stick or Arc Gouging

SPECIFICATIONS:

Input Power: 80Volts DC

Output Range: 15-40 Volts, 30-350 Amps

Net Weight: 59 lb. (27 kg)

Processes: MIG / Stick / Flux-Cored / Arc Gouging

Contact Sales Rep

Our Rental Team

We are customization specialists. Every job has unique needs. We are here to make sure the equipment works for your project from start to finish. You’ll get more than a rental from us. You’ll get a dedicated support team no matter the size or location of the project.
